Ultra-High Fiber Count

Semtrex specializes in designing and producing advanced cabling and connectivity products, including fiber optic cables, patch cords, pigtails, and cable management systems. With local manufacturing and warehousing combined with responsive customer support, we ensure you get the right product quickly and reliably.

Leveraging decades of experience in data connectivity, Semtrex delivers high-performance, cost-efficient solutions for today’s demanding networks. Our Ultra High Fiber Count solutions are built for modern data centers and large-scale networks, offering smaller, lighter cables that maximize space in ducts and pathways. They support efficient mass-fusion splicing and flexible installation, making them ideal for both indoor and outdoor high-density deployments.

“At Semtrex, we understand that ultra-high fiber count solutions are critical to modern network performance. We are committed to meeting the evolving needs of our Enterprise customers efficiently and effectively.

With a comprehensive range of UHFC products and the ability to adapt quickly in a rapidly changing industry, we provide the solutions, support, and service that our partners and distribution networks depend on.”

— Elaine Chellenbron, Head of Channel Sales

Data Center Challenges

The extraordinary growth of cloud computing, the Internet of Things (IoT), and artificial intelligence has dramatically reshaped data center scale, architecture, and connectivity requirements.

Over the past two decades, global IP traffic has surged from 12 petabytes per month to an enormous 156,000 petabytes (156 exabytes), and it continues to accelerate—projected to reach 396,000 petabytes per month, reflecting an increase of more than 150%.

At Semtrex Hyperscale, we design and deliver advanced, scalable network infrastructure solutions that support ultra-high fiber counts, greater bandwidth demands, and seamless connectivity—meeting the evolving needs of both hyperscale and colocation data centers.

Our Ultra-High Fiber Count Solution is purpose-built for data center environments requiring high-capacity interconnection within and between facilities at an unprecedented scale.

Fiber Density

With the rapid expansion of fiber in modern data centers, the Semtrex Hyperscale Ultra-High Fiber Count Solution empowers your rising network density through cables supporting up to 10,368 fibers and connectivity platforms capable of housing up to 13,864 fibers. Throughout the data hall, this Ultra-High Fiber Count Solution streamlines distribution from higher fiber counts to lower fiber counts, delivering fast, efficient, scalable installation and maintenance.

Space Optimization

The sheer volume of data that must be stored and processed within today’s data centers makes space more valuable than ever. Existing cable ducts are often at capacity, while the demand for greater connectivity and higher bandwidth continues to accelerate. The Semtrex Hyperscale Ultra-High Fiber Count Solution is engineered to accommodate substantial volumes of fiber cabling within a compact footprint—enhancing space optimization and maximizing utilization across ducts, pathways, and infrastructure environments.

Cable Management

The rapid expansion of cloud computing services has driven the evolution of multi–data center architectures that demand dense interconnections both between buildings and within facilities. Integrating these advanced designs into existing network infrastructures has often resulted in complex cable management challenges and gradual network performance degradation. The Semtrex Hyperscale Ultra-High Fiber Count Solution empowers data centers to connect and interconnect using ultra-high fiber count cabling, supported by advanced ribbon-based technology, while significantly simplifying cable management across and between data center environments.

Speed

From manufacturing and delivery to installation and ongoing maintenance, modern data center networks demand speed at every stage. The Semtrex Hyperscale Ultra-High Fiber Count Solution is designed to meet these expectations with shorter lead times, reduced installation durations, and faster execution of moves, adds, and changes. By utilizing practical, high-density connectivity methods—including splicing, patching, and blowing—Semtrex ensures streamlined, efficient, and rapid deployment across dynamic data center environments.

Operational Costs

Lowering operational costs is a major focus for every data center operator. Industry research shows that the majority of initial capital expenditure is consumed by equipment procurement and installation, placing significant pressure on budgets from day one. Managing these expenses efficiently is critical to maintaining profitability and long-term scalability. The Semtrex Hyperscale Ultra-High Fiber Count Solution is built to address these challenges by combining advanced ribbon-based fiber technology with high-efficiency deployment methods such as mass-fusion splicing, pre-terminated assemblies, and plug-and-play connectivity. This integrated approach reduces installation time, minimizes labor requirements, and lowers ongoing maintenance costs—delivering measurable savings while maintaining high performance and reliability.

High Performance

As connectivity demands continue to rise, the performance and reliability of connected devices—and the networks powering them—have become more critical than ever. Modern data centers require solutions that deliver both high capacity and uncompromised signal integrity. The Semtrex Hyperscale Ultra-High Fiber Count Solution provides a high-density, low-loss infrastructure designed to support ultra-high fiber counts while minimizing insertion loss. This ensures consistent performance, enhanced signal quality, and dependable network efficiency within demanding data center environments.

End-to-end solution

The Semtrex Hyperscale Ultra-High Fiber Count Solution delivers high-density cabling and advanced connectivity solutions designed to support every segment of the data center infrastructure—from the entrance facility through the main distribution areas and across to the end-user or customer zones. Built for scalability and performance, it ensures seamless integration and reliable connectivity throughout the entire data center environment.

Explore the Future of Ultra-High Fiber Count Solutions in Hyperscale Networks

View Article

FiberFusion Solutions

The FiberFusion consists of 12 individual fibers that are intermittently bonded, forming a flexible, collapsible ribbon structure. This unique design allows the ribbon to bend and move easily in any direction.

SWR enables highly efficient mass-fusion splicing while still allowing individual fibers to be separated for single-fiber splicing or connectorization.

By reducing both cable diameter and weight, SWR technology is ideal for ultra-high fiber count cables used in indoor and outdoor environments. This results in lower installation costs and better utilization of cable pathways and duct space.

FiberFusion Features and Benefits

High fiber packing density

Collapsible ribbon allows for up to 10,368 fibers

Single-fiber splicing still an option

Easily split into individual fibers for single-fiber splicing or connectorizing

Faster, easier installation

Easily identified individual bundles and optical fibers optimized for easy mass-fusion splicing, including Dry Core Technology with a longitudinally-applied water blocking tape that eliminates the need for messy hand tools

Improved storage and easier installation

Small-diameter and lighter-weight cable compared to conventional ribbon or single-fiber cables

Low-risk solution

Easy mid-span access functionality should the cable be damaged

Cost-effective cable solution

Smaller and lighter-weight cables mean easier installation practices and lower transportation costs

Fewer connection points

Up to twice the amount of cable can be wound on a drum, longer cable reduces the number of connection points, improving network latency

Inside Plant (ISP)

Outside Plant (OSP)

Inside Plant (ISP) / Outside Plant (OSP)

External Network Interface (ENI)

Fiber counts in outside plant (OSP) cables for campus interconnections and service provider networks continue to grow rapidly. The building entrance, also known as the External Network Interface (ENI), serves as the critical link between the data center and the outside network. As fiber volumes increase, the ENI must deliver higher density, greater space efficiency, and improved accessibility to ensure effective fiber management and seamless distribution within the facility.

To address these evolving demands, Semtrex Hyperscale offers a comprehensive range of entrance facility solutions designed for fast, streamlined installation. These solutions include mass-splice frames, wall-mounted cabinets, and rack-mounted panels engineered to support fiber counts that exceed today’s requirements while enabling scalable growth for the future.

Wall-Mountable Solutions

AFL Hyperscale’s mass-fusion splice cabinets are designed to save space in the data center entrance facility. Rather than splicing on a fiber frame, the cabinets can be wall-mounted to transition OSP cables to ISP cables up to 6,912 fibers. The cabinets are lightweight and designed for easy installation by one person.

The splice cabinets feature leaf-style trays which allow 144 fiber mass-fusion splices per tray, as well as a raceway and manifold system that ensures fiber protection and network reliability.

Mass-Splice Frames

Semtrex Hyperscale’s range of mass-splice frames delivers scalable, high-density splicing performance for demanding network environments. These cabinets are designed to splice OSP cables with capacities of up to 13,824 fibers into indoor backbone segments of 288 fibers, ensuring efficient transition from outside plant to in-building infrastructure.

Engineered for straightforward installation and ongoing maintenance, the frames provide generous slack storage at both incoming and outgoing cable entry points. Integrated mounting positions for cable transitions enable controlled breakout from the cable sheath to the splicing area, ensuring organized routing and long-term fiber protection.

Rack-Mountable Panels

The rack-mountable panels below are designed to accommodate pre-installed FiberFusion LC pigtails and incorporate a range of innovative features that enable fast, efficient installation wherever interconnection is required. Engineered for high-density environments, these panels simplify deployment while ensuring reliable and organized fiber management.

Breakout Boxes

Semtrex Hyperscale offers a range of easy-to-install breakout boxes engineered to terminate high fiber-count FiberFusion cables and efficiently distribute them to multiple splice frames and patch panels. Designed for streamlined deployment and organized cable management, these breakout solutions simplify high-density fiber distribution within data center and telecom environments.

Main Distribution Area (MDA)

The Main Distribution Area (MDA) serves as the central distribution hub within the data center’s structured cabling system. It is the point where horizontal cabling cross-connects to active equipment—such as switches, servers, and storage systems—or extends to the customer area.

Semtrex Hyperscale’s Ultra-High Fiber Count Solution delivers high-density connectivity designed to minimize the MDA footprint. By maximizing space utilization, simplifying moves, adds, and changes (MACs), and accelerating customer turn-up times, this solution enhances operational efficiency while supporting scalable network growth.

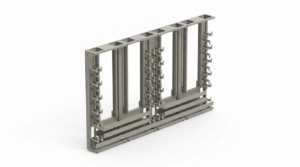

Slim-Depth Open Optical Distribution Frame (OODF)​

The Slim-Depth Open Optical Distribution Frame (OODF) is a distinctive, high-density distribution solution engineered to support up to 3,456 fibers within a compact footprint.

Featuring integrated horizontal management troughs and the capability to be installed side-by-side or back-to-back, the OODF enables efficient patch cord distribution across a cluster of frames—eliminating the need for conventional overhead routing systems. This design improves space utilization, enhances cable organization, and simplifies ongoing network management.

The Main Distribution Area (MDA) serves as the central distribution hub within the data center’s structured cabling system. It is the point where horizontal cabling cross-connects to active equipment—such as switches, servers, and storage systems—or extends to the customer area.

Semtrex Hyperscale’s Ultra-High Fiber Count Solution delivers high-density connectivity designed to minimize the MDA footprint. By maximizing space utilization, simplifying moves, adds, and changes (MACs), and accelerating customer turn-up times, this solution enhances operational efficiency while supporting scalable network growth.

Housings and Panels

Cassettes

Intermediate Distribution Frame (IDF)

The Slim-Depth Open Optical Distribution Frame (OODF) is a distinctive, high-density distribution solution engineered to support up to 3,456 fibers within a compact footprint.

Featuring integrated horizontal management troughs and the capability to be installed side-by-side or back-to-back, the OODF enables efficient patch cord distribution across a cluster of frames—eliminating the need for conventional overhead routing systems. This design improves space utilization, enhances cable organization, and simplifies ongoing network management.

The Main Distribution Area (MDA) serves as the central distribution hub within the data center’s structured cabling system. It is the point where horizontal cabling cross-connects to active equipment—such as switches, servers, and storage systems—or extends to the customer area.

Semtrex Hyperscale’s Ultra-High Fiber Count Solution delivers high-density connectivity designed to minimize the MDA footprint. By maximizing space utilization, simplifying moves, adds, and changes (MACs), and accelerating customer turn-up times, this solution enhances operational efficiency while supporting scalable network growth.

Slim-Depth Optical Distribution Frame (ODF)​

TheSlim-Depth Optical Distribution Frame (ODF)​ offers a solution for the mass splicing and routing of high-density cables for presentation and distribution to multiple customer areas within a data center. The frame, in combination with the snap-fit breakout box, facilitates the landing of high-core-count SpiderWeb Ribbon® Wrapping Tube Cable (WTC) into a 24f (single or ribbon) cassette that can be presented to splice pass-through or pre-terminated splice cassettes.

Horizontal Cabling

The MDA connections out to the LDP and equipment cabinets are referred to as horizontal cabling. When designing these links, consideration must be given to the flexibility required for the infrastructure over its lifetime.

Local Distribution Point (LDP)

The AFL Hyperscale Ultra-High Fiber Count Solution helps you maximize density and future-proof your network infrastructure against growing bandwidth requirements in the network equipment area or customer cage.

Assemblies
